Automatic Case Labeler | Box & Case Labeling Systems
With the Case Labeler Machine you have the flexibility to have case labeling done right after the case erector, the case taper or anywhere on your floor.
This system is custom built to the application as almost all our equipment is. It can be fitted into the tightest of spaces to accommodate your production environment. This system is independent from any case erector or sealer but can be a great addition to it. Many models of erector don’t allow for sufficient room to place a label head or the practicality of access to the machine is just not there.
Real-time printing and labeling system Label printing and labeling is fully automatic, which improves work efficiency, reliability, immediacy and accuracy, and also saves labor costs. Real-time printing and labeling systems are widely used in medicine, tobacco, electronics, The automated logistics system in the chemical industry, the Internet of Things and the daily chemical industry is also an ideal choice for the secondary and tertiary packaging and labeling of the electronic supervision code.
Features and Benefits
Thermal transfer ribbon printing technology, printing fonts, barcodes and other information is clear and beautiful.
The printing content is flexible and variable, instant information, instant printing, instant labeling, convenient, intuitive, error-free, and convenient for inventory management.
Industry-specific print engine, stable and long-term printing.
A variety of optional labeling methods: pneumatic, air blowing, corner sticking, direct sticking, etc., which can meet the labeling requirements of different occasions and different positions.
It can be controlled through Ethernet or networked with the device, which facilitates the transmission of various printing information.
Intelligent label management function, fault prompt alarm and other functions.
Independently designed caster-type mobile mounting bracket, beautiful and easy to adjust or move flexibly.
Specifications
Labeling speed: up to 40-120 pieces/min (related to the object to be attached, label size, and labeling method)
Labeling accuracy: ±2mm (excluding product and label errors)
Labeling position: top, side, corner stickers
Label size: maximum 200mm (length) × 100mm (width); minimum 15mm (length) × 20mm (width)
Print content: text, serial number, date, graphics, one- and two-dimensional barcodes, and other variable information.
Print resolution: 203dpi, 300dpi, 600dpi (three options)
Printing Speed: 305mm/sec(203dpi), 203mm/sec(300dpi)
Maximum width: less than 104mm
Communication control port: RS232 or RS485
Power supply: 220VAC±5%
Power: 400W
Air source: 0.4-0.6MPa
Dimensions: 1300mm (length) × 1000mm (width) × 1700mm (height)
Labeling method
Pneumatic, sweeping, corner sticking and other methods are available for users to choose, which can meet the labeling requirements of different occasions/different items;
Flexible software editing: strong compatibility, Chinese/English label editing software, flexible and practical printing content editing.
Optional features
If you need to know detailed information, please contact us, tell us your needs, we will provide you with satisfactory service as soon as possible!
Related Products
-

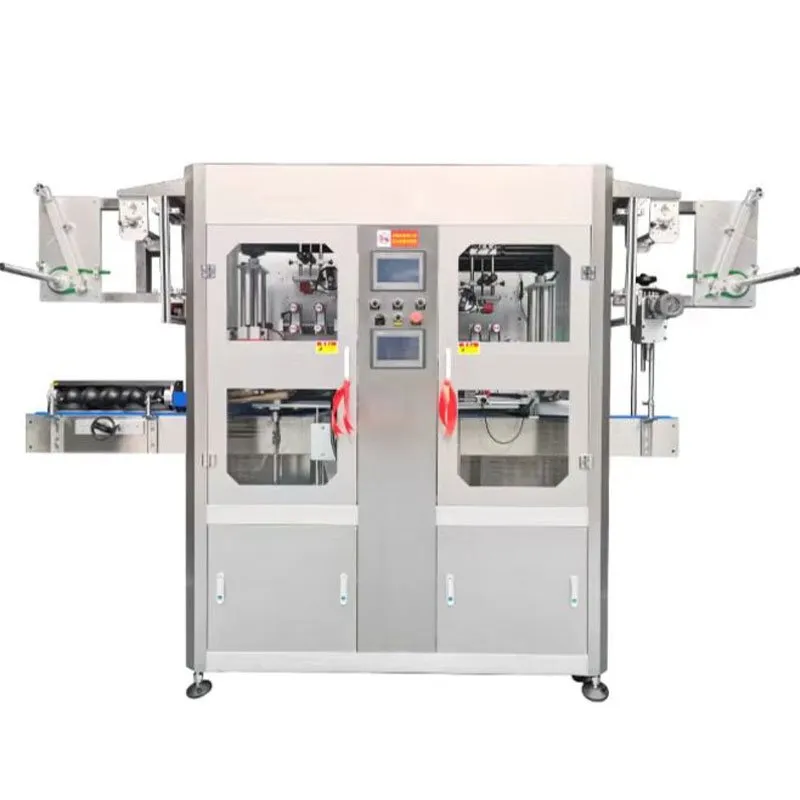

YANMAO Automatic Shrink sleeving labeling machine
